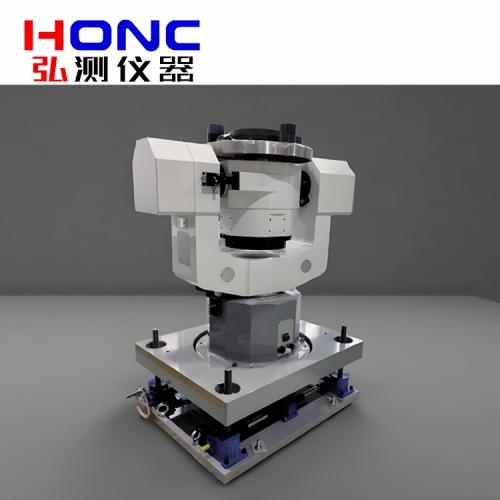

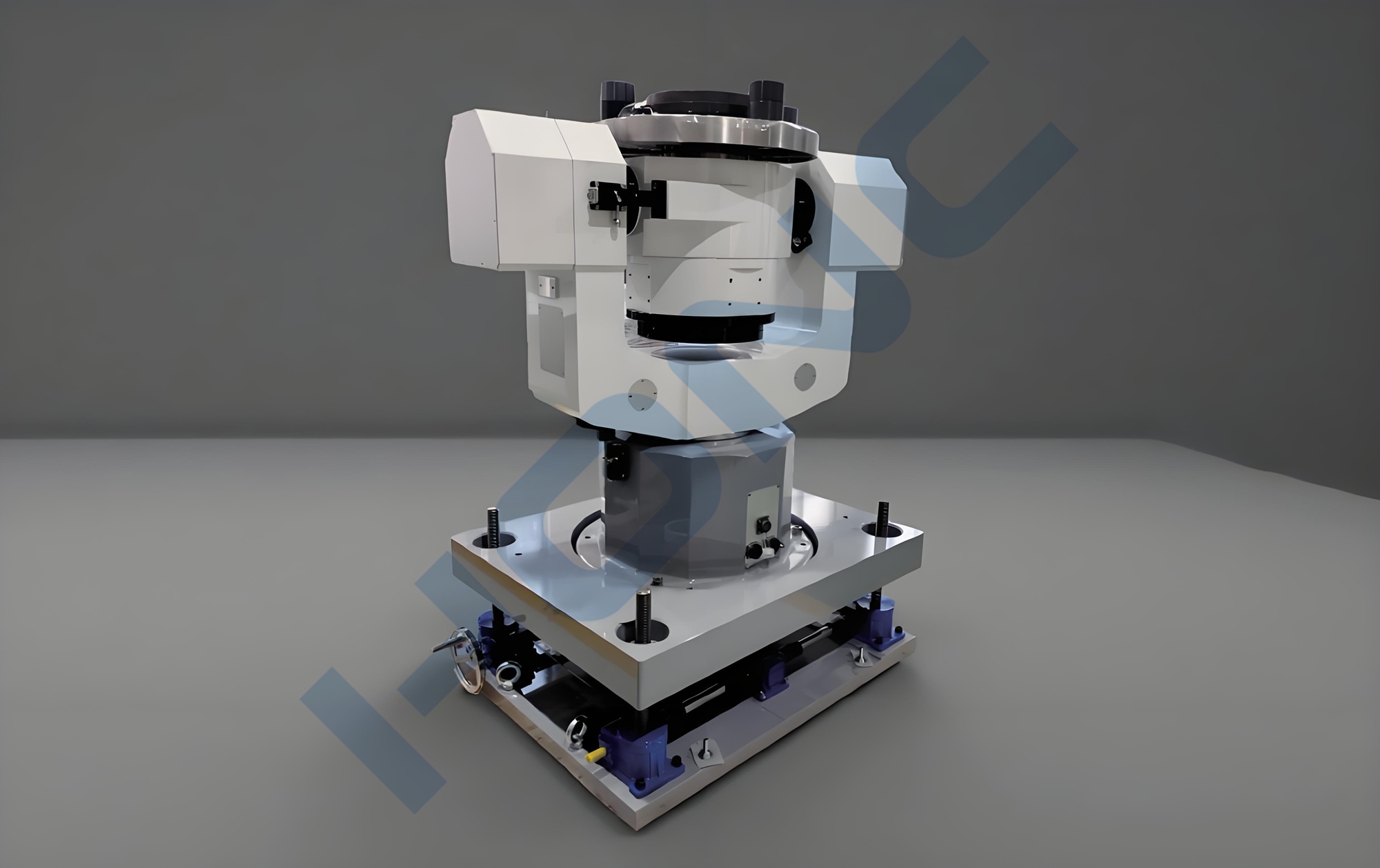

3DT-500AH型 三軸電動升降轉臺(帶升降)【慣性導航測試轉臺】
產品簡介 Product introduction
慣性導航測試轉臺系統/Inertial Navigation Test Turntable System
慣導測試轉臺根據需要,有電動和手動兩種驅動方式,按結構可分為單軸、雙軸和三軸轉臺等,具有位置、速率、搖擺、跟蹤等多種功能,用于各種慣性器件、慣性組合、隨動跟蹤裝置等的地面測試。
The inertial navigation test turntable,according to the needs, has two driving modes: electric and manual. According to the structure, it can be divided into single-axis, dual-axis and three-axis turntables. It has multiple functions such as position, rate, swing and track-ing, and is used for ground testing of various inertial devices, inertial units,follow-up tracking devices, etc.
三軸電動轉臺是一種能夠實現三個獨立軸(通常為俯仰、滾轉和偏航)旋轉的設備,廣泛應用于航空航天、軍事、科研、工業自動化等領域。
The three-axis electric turntable is a device thatcanrotate onthreeindepen-dent axes (usually pitch, roll and yaw). It is widely used in aerospace, military,scientifc research, industrial automation and other fields.

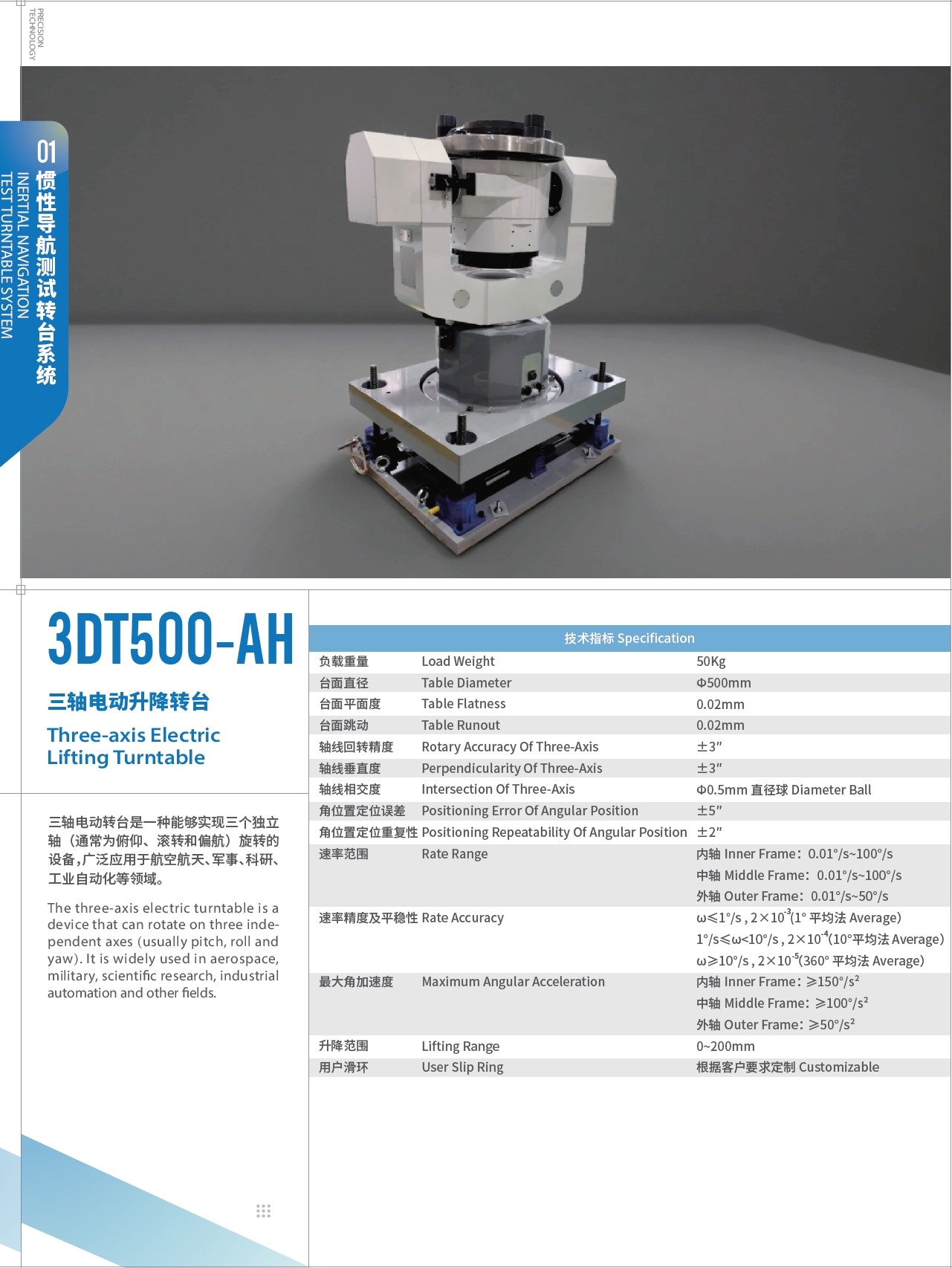

技術指標 Technical indicators
1.負載重量/Load Weight:50Kg;
2.臺面直徑/Table Diameter:Φ500mm;
3.臺面平面度/Table Flatness:0.02mm;
4.臺面跳動/Table Runout:0.02mm;
5.軸線回轉精度/Rotary Accuracy Of Three-Axis:±3";
6.軸線垂直度/Perpendicularity Of Three-Axis:±3";
7.軸線相交度/Intersection Of Three-Axis:Φ0.5mm直徑球/DiameterBall;
8.角位置定位誤差/Positioning Error Of Angular Position:±5";
9.角位置定位重復性/Positioning Repeatability Of Angular Position: ±2";
10.速率范圍/Rate Range:
內軸/ Inner Frame: 0.01°/s~100°/s;
中軸/ Middle Frame: 0.01°/s~100°/s;
外軸/ Outer Frame: 0.01°/s~50°/s;
11.速率精度及平穩性/RateAccuracy:
ω≤1°/s ,2×10-3(1° 平均法 Average);
1°/s≤ω<10°/s ,2×10-4(10°平均法Average);
ω≥10°/s ,2×10-5(360° 平均法 Average);
12.最大角加速度/Maximum Angular Acceleration:
內軸/ Inner Frame:≥150°/s2;
中軸/ Middle Frame: ≥100°/s2;
外軸/ Outer Frame:≥50°/s2;
13.升降范圍/Lifting Range:0~200mm;
14.用戶滑環/User Slip Ring:根據客戶要求定制/Customizable;
