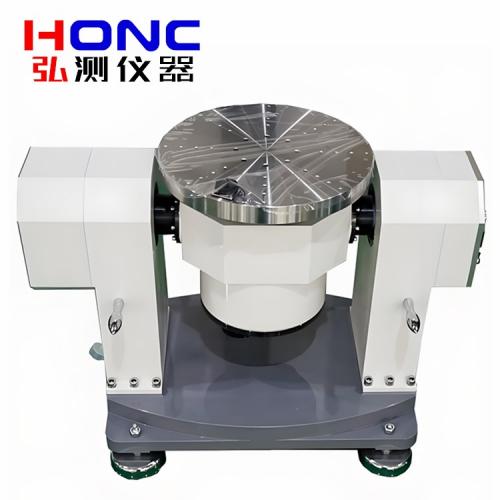

2FDT-450型 雙軸電動轉臺【慣性導航測試轉臺】
新款外觀,僅供參考,請以實物為準
產品簡介 Product introduction
慣性導航測試轉臺系統/Inertial Navigation Test Turntable System
慣導測試轉臺根據需要,有電動和手動兩種驅動方式,按結構可分為單軸、雙軸和三軸轉臺等,具有位置、速率、搖擺、跟蹤等多種功能,用于各種慣性器件、慣性組合、隨動跟蹤裝置等的地面測試。
The inertial navigation test turntable,according to the needs, has two driving modes: electric and manual. According to the structure, it can be divided into single-axis, dual-axis and three-axis turntables. It has multiple functions such as position, rate, swing and track-ing, and is used for ground testing of various inertial devices, inertial units,follow-up tracking devices, etc.
技術指標 Technical indicators
1,負載重量:30Kg;
2,臺面直徑:Ф450mm;【可根據用戶要求定制】
3,臺面平面度:0.02mm;
4,臺面跳動:0.02mm;
5,軸線回轉精度:±5″;
6,軸線垂直度:±5″;
7,軸線相交度:Ф0.5mm直徑球;
8,角位置定位誤差 外軸:±3″;內軸:±2″;
9,角位置定位重復性:±2″;
10,速率范圍:
內軸:0.01°/s~800°/s;
外軸:0.01°/s~300°/s;
11,速率精度及平穩性:
ω≤1°/s , 2×10-3 (1°平均法);
1°/s≤ω<10°/s , 2×10-4 (10°平均法);
ω≥10°/s , 2×10-5(360°平均法)。
12,最大角加速度:
內軸:≥200°/s2;
外軸:≥100°/s2;
13,用戶滑環:根據用戶要求定制;
14,轉臺自重:≤750Kg;
15,臺體外形尺寸:1320×700×960mm;
