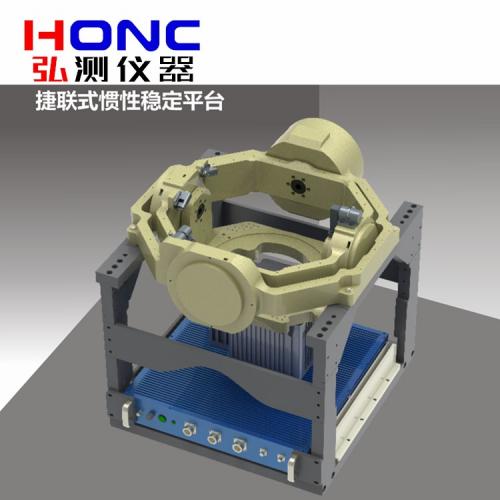

JLGX-600型 捷聯式慣性穩定平臺【慣性導航測試轉臺】

產品簡介 Product introduction
慣性導航測試轉臺系統/Inertial Navigation Test Turntable System
慣導測試轉臺根據需要,有電動和手動兩種驅動方式,按結構可分為單軸、雙軸和三軸轉臺等,具有位置、速率、搖擺、跟蹤等多種功能,用于各種慣性器件、慣性組合、隨動跟蹤裝置等的地面測試。
The inertial navigation test turntable,according to the needs, has two driving modes: electric and manual. According to the structure, it can be divided into single-axis, dual-axis and three-axis turntables. It has multiple functions such as position, rate, swing and track-ing, and is used for ground testing of various inertial devices, inertial units,follow-up tracking devices, etc.

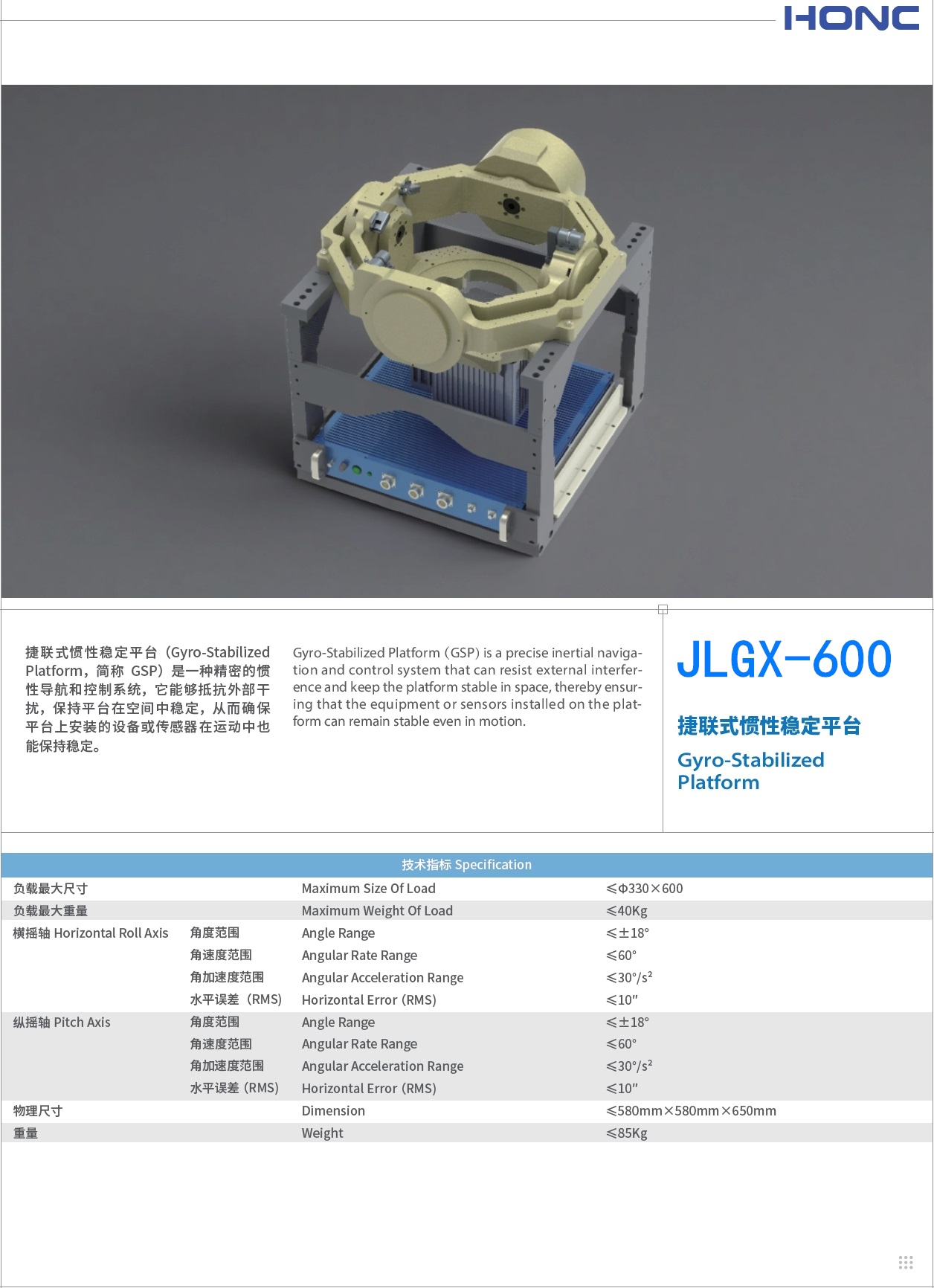

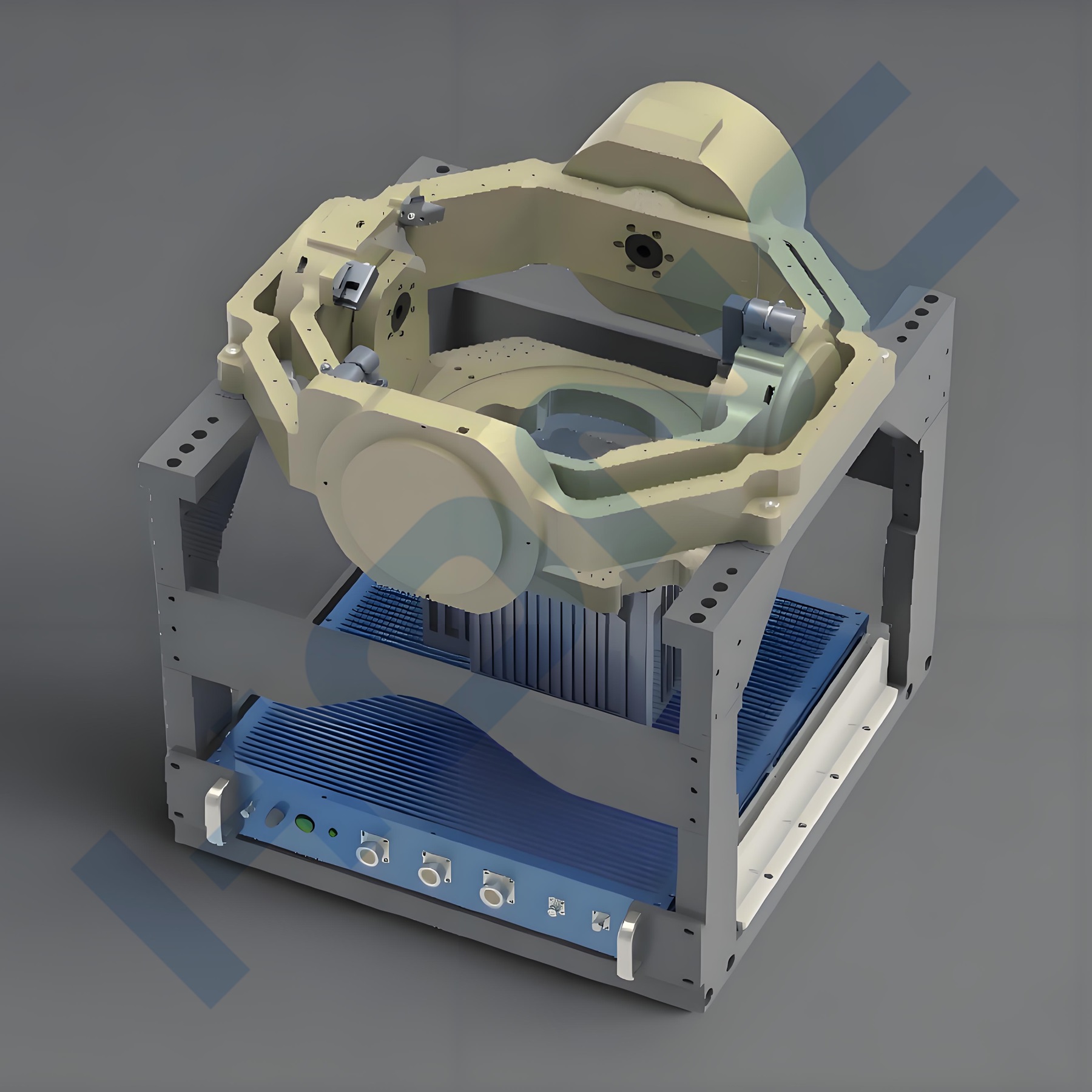

捷聯式慣性穩定平臺(Gyro-StabilizedPlatform,簡稱GSP)是一種精密的慣性導航和控制系統,它能夠抵抗外部干擾,保持平臺在空間中穩定,從而確保平臺上安裝的設備或傳感器在運動中也能保持穩定。
Gyro-Stabilized Platform (GSP) is a precise inertial navigation and control system that can resist external interference and keep the platform stable in space, thereby ensuring that the equipment or sensors installed on the platform can remain stable even in motion.

技術指標 Technical indicators
● 設備功能
實現穩定平臺臺面對當?shù)氐乩碜鴺?biāo)水平面的隨動跟蹤。
1.負載最大尺寸/Maximum Size Of Load:≤φ330×600mm;
2.負載最大重量/Maximum Weight Of Load:≤40Kg;
3.橫搖軸/Horizontal Roll Axis:
角度范圍/Angle Range:≤±18°;
角速度范圍/Angular Rate Range:≤60°;
角加速度范圍/Angular Acceleration Range:≤30°/s2;
水平誤差(RMS)/Horizontal Error (RMS):≤10";
4.縱搖軸/Pitch Axis:
角度范圍/Angle Range:≤±18°;
角速度范圍/Angular Rate Range:≤60°;
角加速度范圍/Angular Acceleration Range:≤30°/s2;
水平誤差(RMS)/Horizontal Error (RMS):≤10";
5.物理尺寸/Dimension:≤580mm×580mm×650mm;
6.重量/Weight:≤85Kg;
