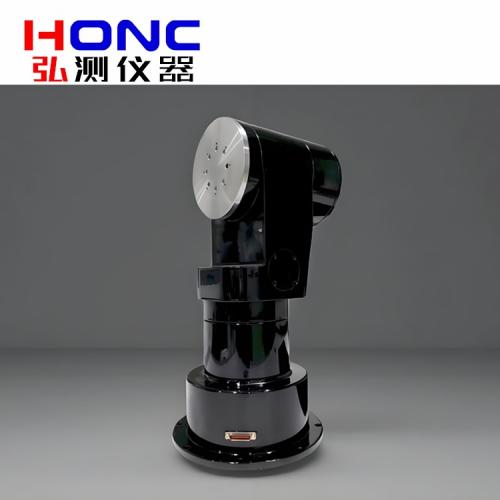

2STGZ-100型 L型輕載荷雙軸跟蹤轉臺【衛星跟蹤轉臺系統】
產品簡介 Product introduction
衛星跟蹤轉臺系統/Satellite Tracking Turntable System
衛星跟蹤轉臺系統，是一套在地面上模擬衛星指向與姿態，同時消除地球自轉的影響的裝置?？捎糜诹孔油ㄐ诺孛娼邮照?，和量子衛星發射端一起，完成星地量子通信。配合客戶的軟件控制和導星設計，轉臺具備跟蹤低軌衛星的能力。
The satellite tracking turntable system is a set of devices that simulate the pointing and posture of satellites on the ground, while eliminating the influence of the earth's rotation. It can be used for quantum communication ground receiving station, and together with the quantum satellite transmitter, it can complete satellite-to-ground quantum communication. With the customer's software control and guide star design, the turntable has the ability to track low-orbit satellites.
輕載荷跟蹤轉臺/Light Load Tracking Turntable
輕載荷跟蹤轉臺，擁有方位軸、俯仰軸兩個運動自由度，是一種TL型二維跟蹤設備。在地面上模擬衛星指向與姿態，同時消除地球自轉的影響的裝置?？捎糜诹孔油ㄐ诺孛娼邮照?，和量子衛星發射端一起，完成星地量子通信。配合用戶的軟件控制和導星設計，該二維跟蹤轉臺具備跟蹤衛星的能力。
The light load tracking turntable has two degrees of freedom of movement in the azimuth axis and pitch axis. It is a TL type two-dimensional tracking equipment,which can simulate satellite pointing and attitude on the ground while eliminating the influence of the earth's rotation. It can be used as a quantum communication ground receiving station, and together with the quantum satellite transmitter, complete satellite-to-ground quantum communication. And cooperating with the user's software control and guide design, the two-di-mensional tracking turntable has the ability to track satellites.

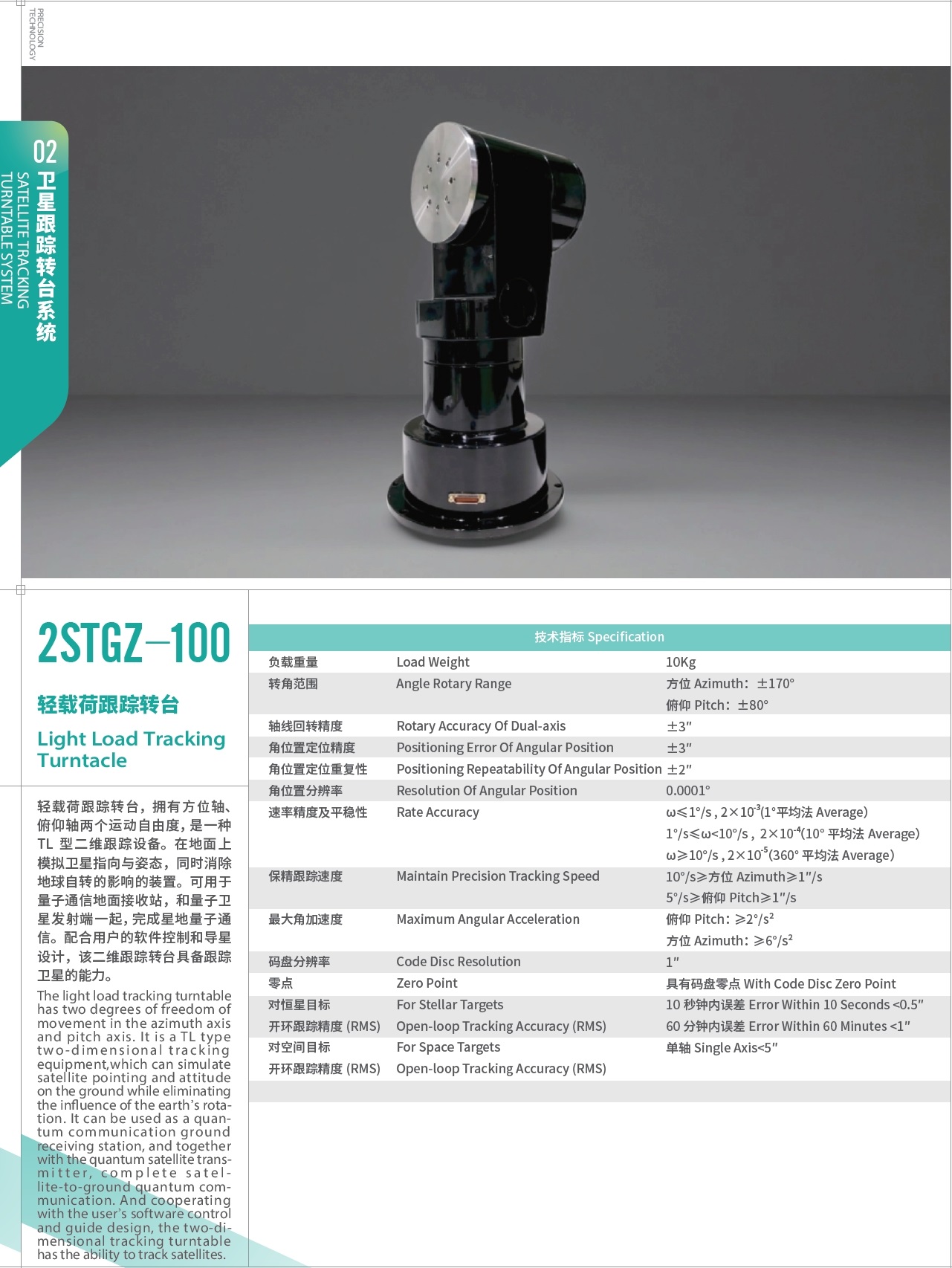

技術指標 Technical indicators
1.負載重量/Load Weight：10Kg；
2.轉角范圍/Angle Rotary Range：
方位/Azimuth：±170°；
俯仰/Pitch：±80°；
3.軸線回轉精度/Rotary Accuracy Of Dual-axis：±3"；
4.角位置定位精度/Positioning Error Of Angular Position：±3"；
5.角位置定位重復性/Positioning Repeatability Of Angular Position：±2"；
6.角位置分辨率/Resolution Of Angular Position：0.0001°；
7.速率精度及平穩性/Rate Accuracy：
ω≤1°/s，2×10-3(1°平均法 Average)；
1°/s≤ω<10°/s，2×10-4(10°平均法Average)；
ω≥10°/s，2×10-5(360° 平均法 Average)；
8.保精跟蹤速度/Maintain Precision Tracking Speed：
10°/s≥方位/ Azimuth≥1"/s；
5°/s≥俯仰/ Pitch≥1"/s；
9.最大角加速度/Maximum Angular Acceleration：
俯仰/Pitch：≥2°/s2；
方位/Azimuth：≥6°/s2；
10.碼盤分辨率/Code Disc Resolution：1"；
11.零點/Zero Point：具有碼盤零點/WithCodeDiscZeroPoint；
12.對恒星目標/For Stellar Targets；開環跟蹤精度(RMS)/Open-loop Tracking Accuracy (RMS)：
10秒鐘內誤差/Error Within 10 Seconds：<0.5"；
60分鐘內誤差/ErrorWithin60Minutes：<1"；
13.對空間目標/For Space Targets；開環跟蹤精度(RMS)/Open-loop Tracking Accuracy (RMS)：
單軸/ Single Axis：<5"；
