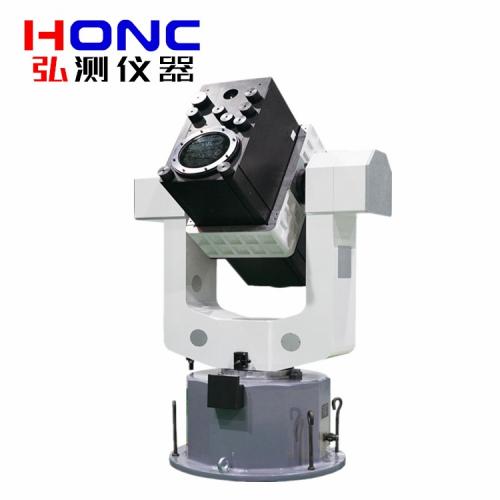

2DT-50FZ型 U型重載荷無人機防治轉臺【衛星跟蹤轉臺系統】

產品簡介 Product introduction
衛星跟蹤轉臺系統/Satellite Tracking Turntable System
衛星跟蹤轉臺系統,是一套在地面上模擬衛星指向與姿態,同時消除地球自轉的影響的裝置??捎糜诹孔油ㄐ诺孛娼邮照?,和量子衛星發射端一起,完成星地量子通信。配合客戶的軟件控制和導星設計,轉臺具備跟蹤低軌衛星的能力。
The satellite tracking turntable system is a set of devices that simulate the pointing and posture of satellites on the ground, while eliminating the influence of the earth's rotation. It can be used for quantum communication ground receiving station, and together with the quantum satellite transmitter, it can complete satellite-to-ground quantum communication. With the customer's software control and guide star design, the turntable has the ability to track low-orbit satellites.

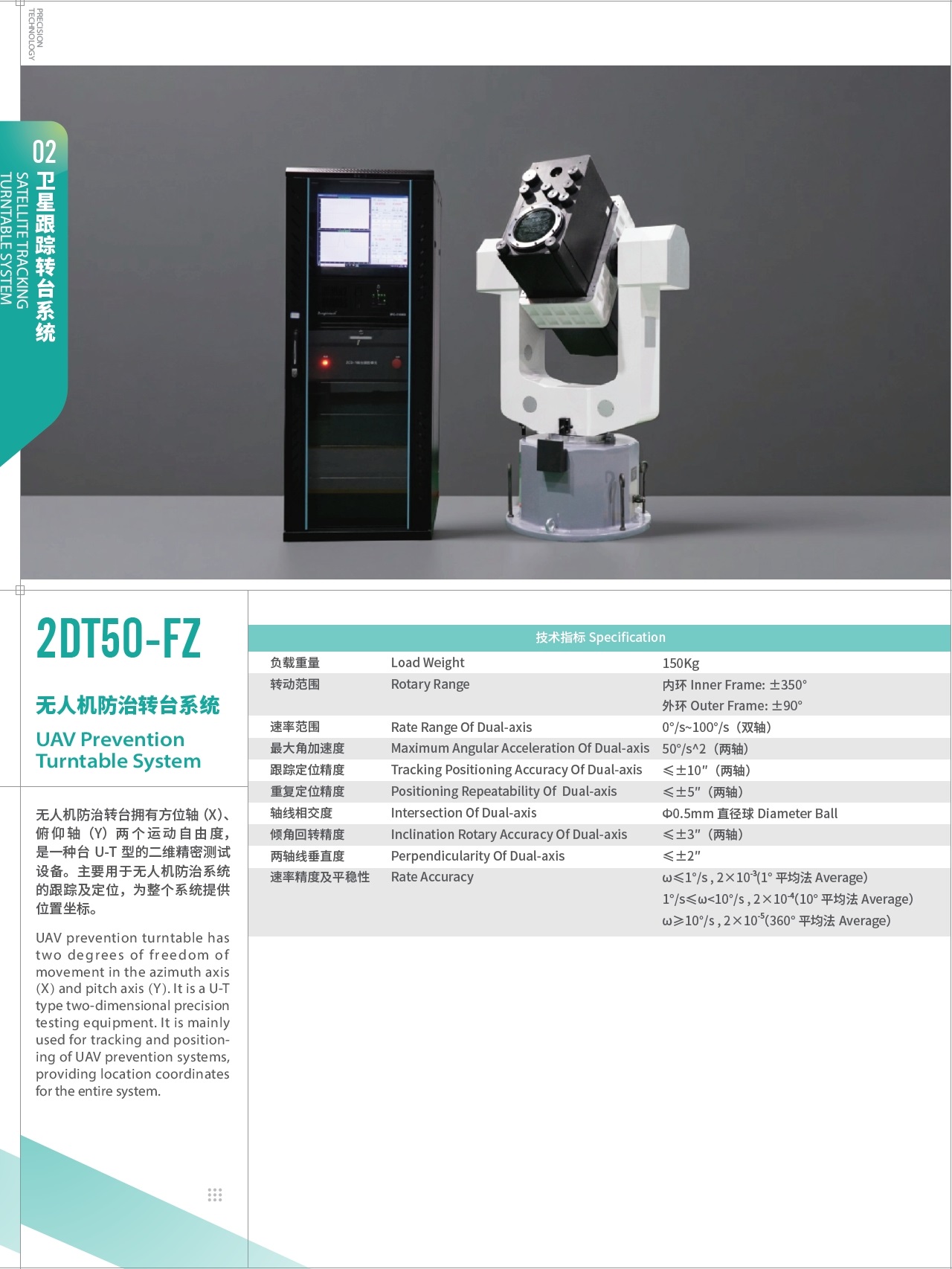

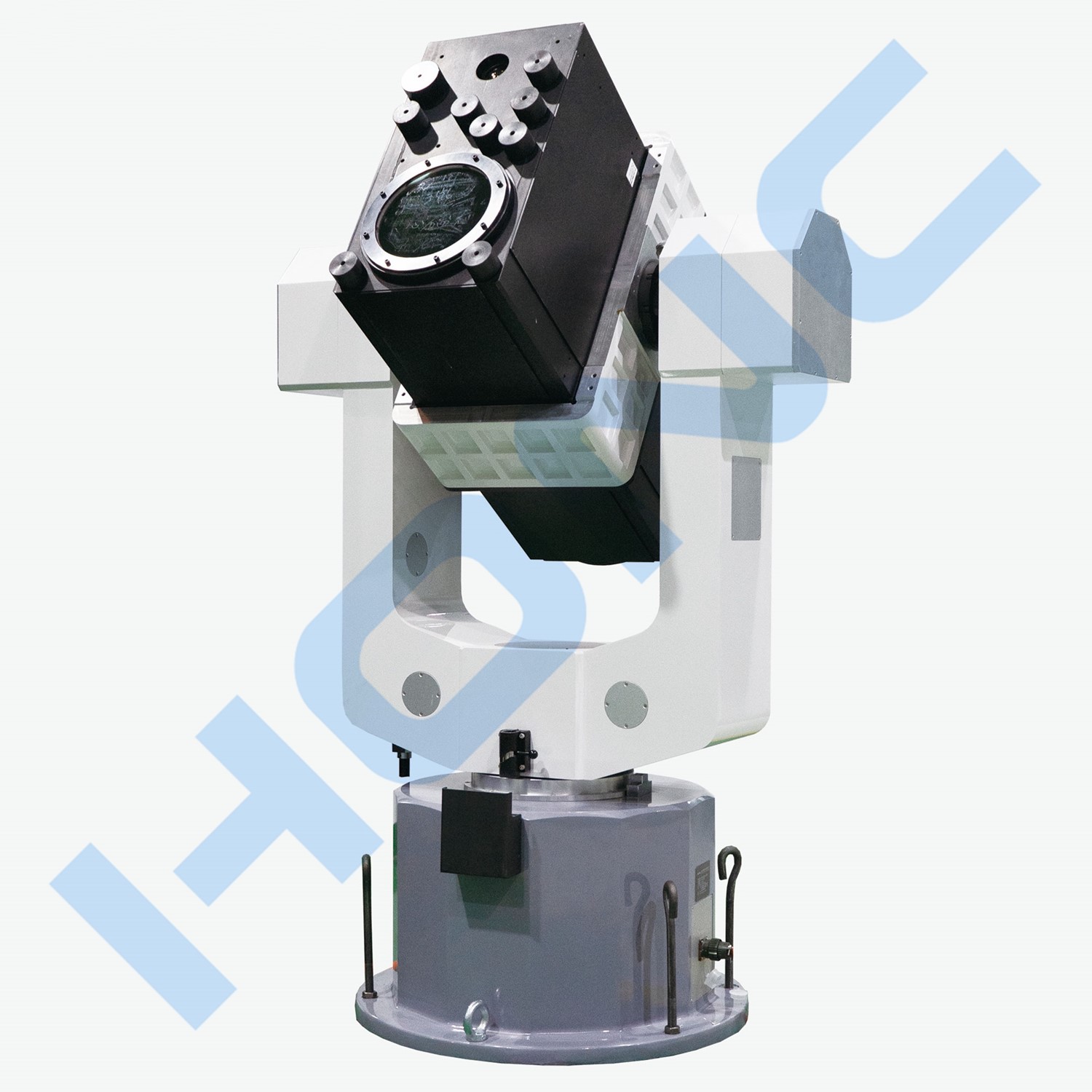

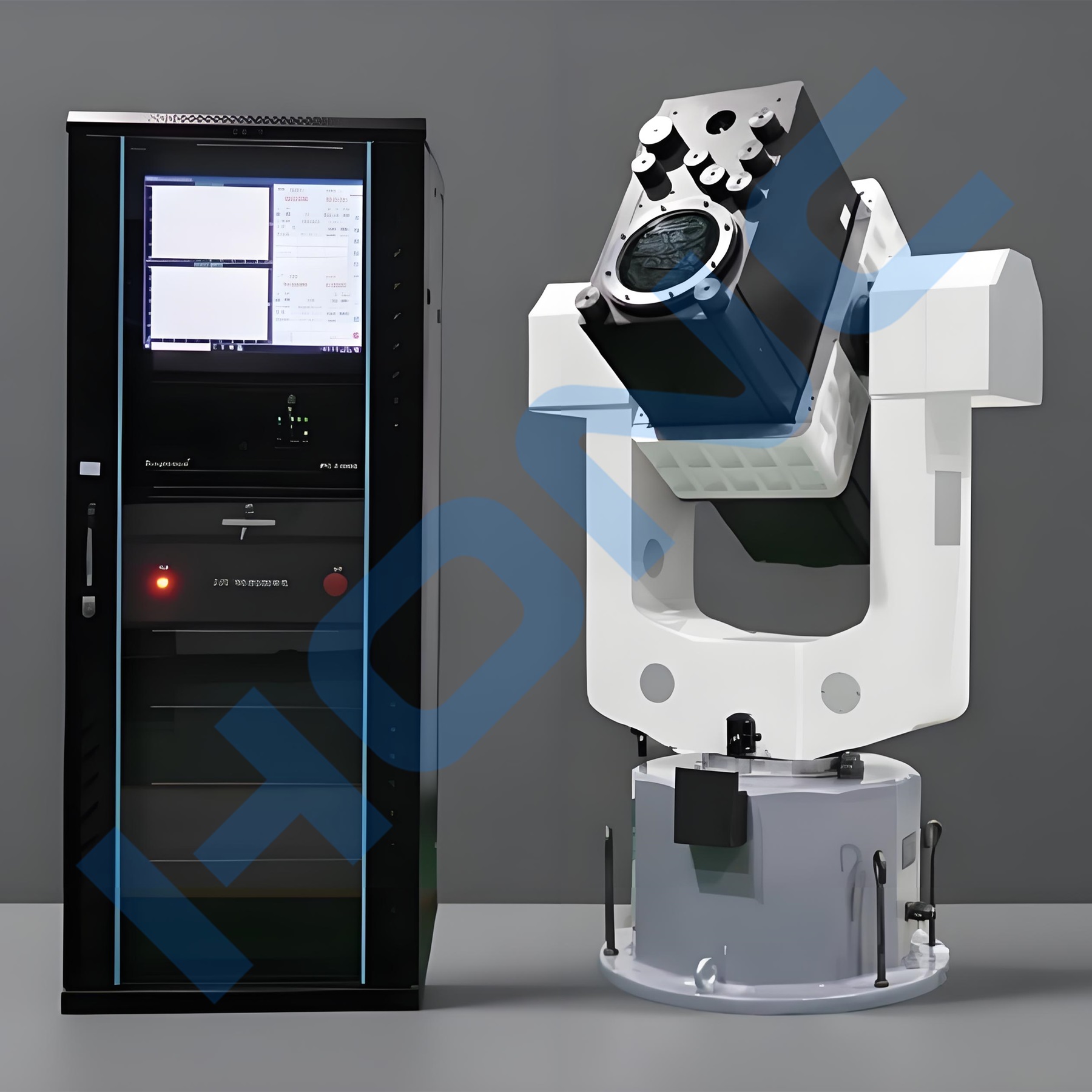

無人機防治轉臺系統/UAV Prevention Turntable System
無人機防治轉臺擁有方位軸(X)、俯仰軸(Y)兩個運動自由度,是一種臺U-T型的二維精密測試設備。主要用于無人機防治系統的跟蹤及定位,為整個系統提供位置坐標。
UAV prevention turntable has two degrees of freedom of movement in the azimuth axis (X) and pitch axis (Y). It is a U-T type two-dimensional precision testing equipment. It is mainly used for tracking and positioning of UAV prevention systems, providing location coordinates for the entire system.

技術指標 Technical indicators
1 、負載重量/Load Weight: 150Kg;
2、 轉動范圍/Rotary Range:
內環/Inner Frame:±350°;
外環/Outer Frame:±90° ;
3 、速率范圍/Rate Range Of Dual-axis: 0°/s~100°/s(雙軸);
4 、最大角加速度/Maximum Angular Acceleration Of Dual-axis: 50°/s2(兩軸);
5 、跟蹤定位精度/Tracking Positioning Accuracy Of Dual-axis: ≤±10″(兩軸);
6、 重復定位精度/Positioning Repeatability Of Dual-axis: ≤±5″(兩軸);
7、 軸線相交度/Intersection Of Dual-axis: Ф0.5mm直徑球/Diameter Ball ;
8、 傾角回轉精度/Inclination Rotary Accuracy Of Dual-axis: ≤±3″(兩軸) ;
9、 兩軸線垂直度/Perpendicularity Of Dual-axis: ≤±2″ ;
10 、速率精度及平穩性/Rate Accuracy:
ω≤1°/s , 2×10-3 (1°平均法Average);
1°/s≤ω<10°/s , 2×10-4 (10°平均法Average);
ω≥10°/s , 2×10-5 (360°平均法Average)。
