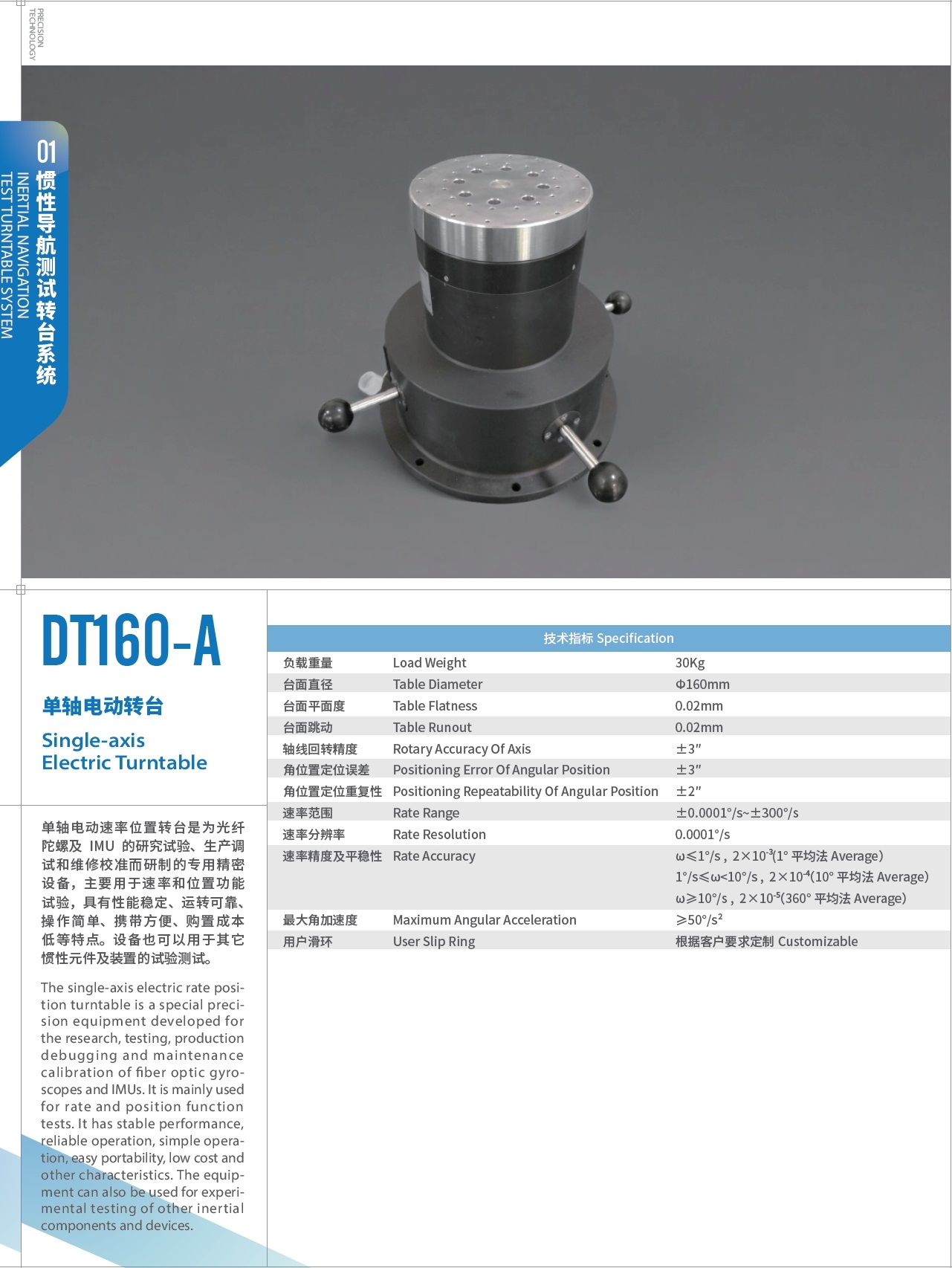

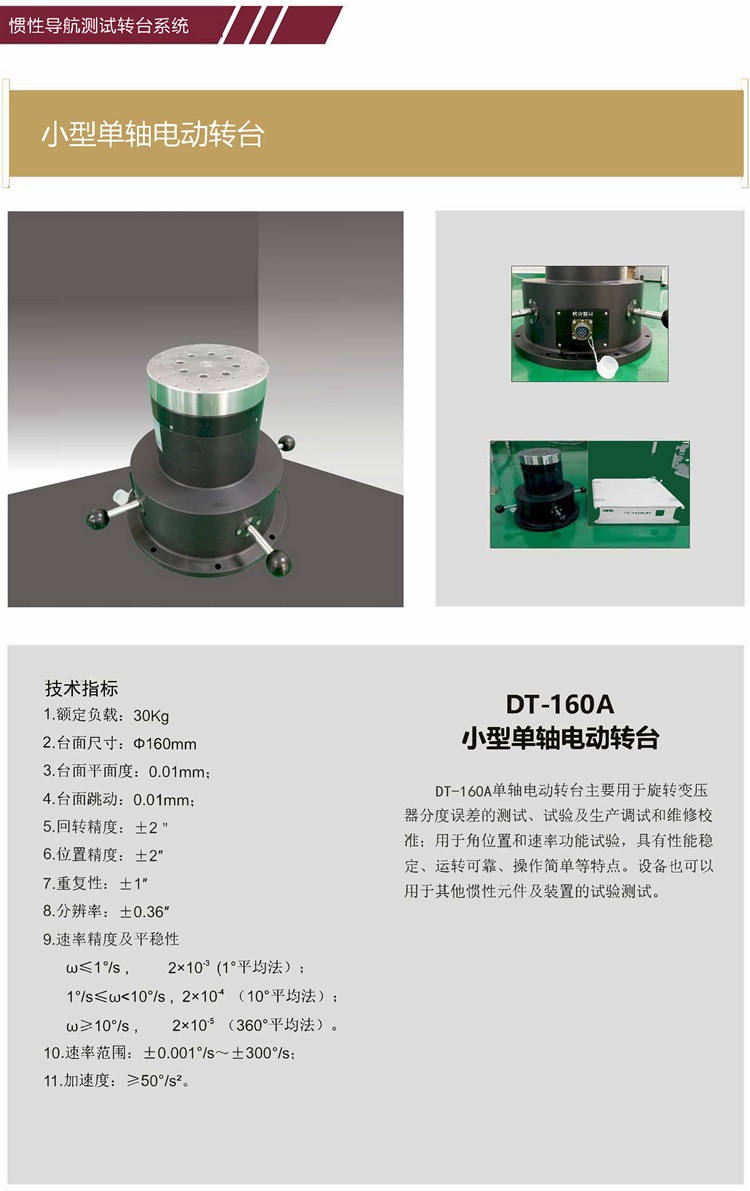

DT-160A型 小型單軸電動速率位置轉臺【慣性導航測試轉臺】
產品簡介 Product introduction
慣性導航測試轉臺系統/Inertial Navigation Test Turntable System
慣導測試轉臺根據需要，有電動和手動兩種驅動方式，按結構可分為單軸、雙軸和三軸轉臺等，具有位置、速率、搖擺、跟蹤等多種功能，用于各種慣性器件、慣性組合、隨動跟蹤裝置等的地面測試。
The inertial navigation test turntable,according to the needs, has two driving modes: electric and manual. According to the structure, it can be divided into single-axis, dual-axis and three-axis turntables. It has multiple functions such as position, rate, swing and track-ing, and is used for ground testing of various inertial devices, inertial units,follow-up tracking devices, etc.

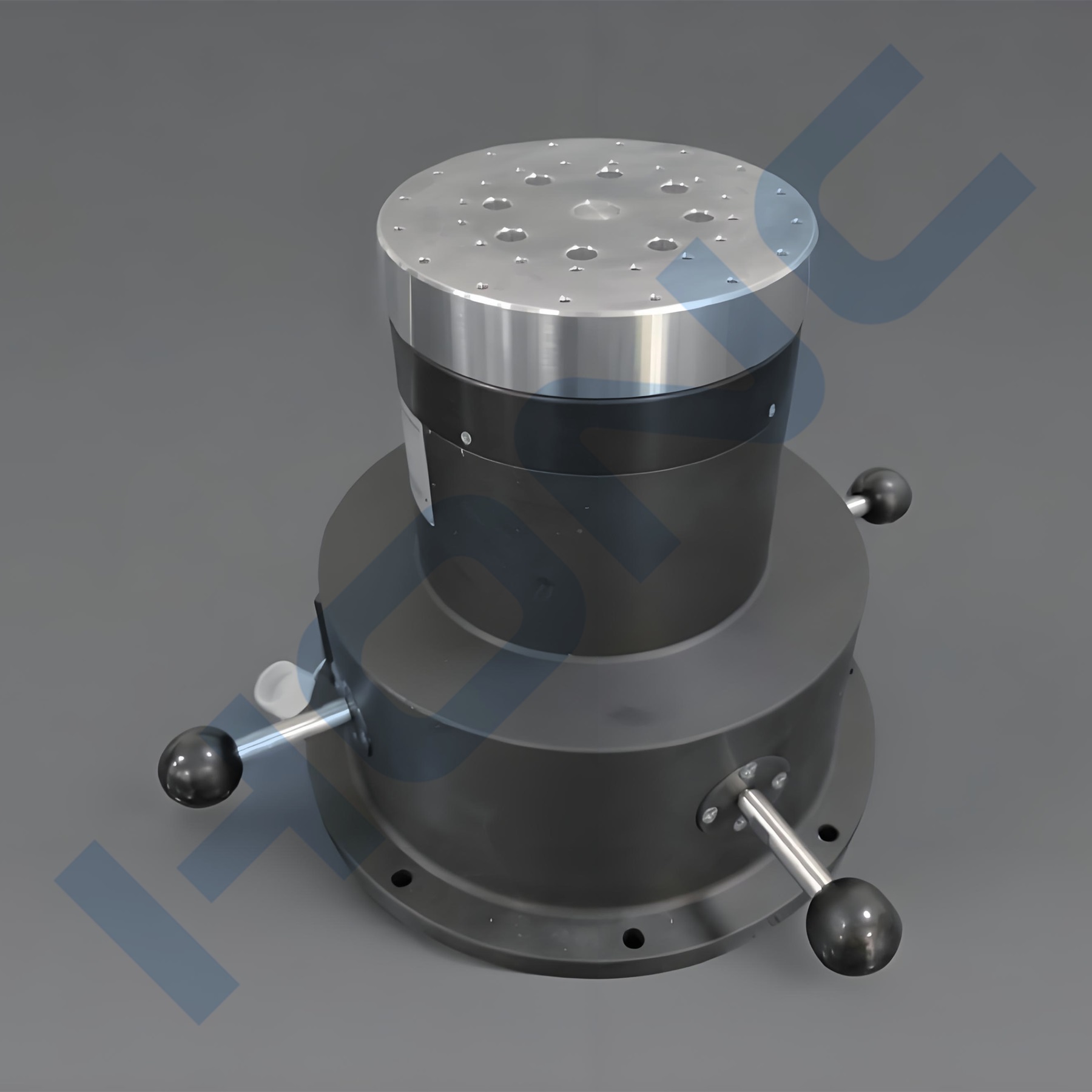

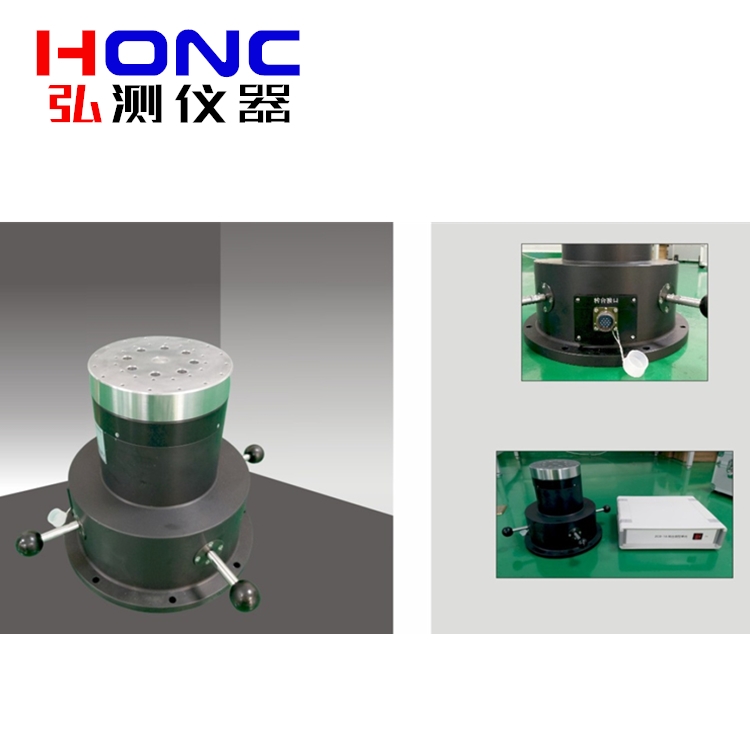

單軸電動速率位置轉臺是為光纖陀螺及IMU的研究試驗、生產調試和維修校準而研制的專用精密設備，主要用于速率和位置功能試驗，具有性能穩定、運轉可靠、操作簡單、攜帶方便、購置成本低等特點。設備也可以用于其它慣性元件及裝置的試驗測試。
The single-axis electric rate positionturntable is a special precision equipment developed for the research, testing, production debugging and maintenance calibration of fiber optic gyroscopes and IMUs. It is mainly used for rate and position function tests. It has stable performance, reliable operation, simple operation, easy portability, low cost and other characteristics. The equipment can also be used for experimental testing of other inertial components and devices.
技術指標 Technical indicators
1.負載重量/Load Weight：30Kg；
2.臺面直徑/Table Diameter：Ф160mm；
3.臺面平面度/Table Flatness：0.02mm；
4.臺面跳動/Table Runout：0.02mm；
5.軸線回轉精度/Rotary Accuracy Of Axis：±3″；
6.角位置定位誤差/Positioning Error Of Angular Position：±2″；
7.角位置定位重復性/Positioning Repeatability Of Angular Position：±1″；
8.速率分辨率/Rate Resolution：0.0001°/s；
9.速率精度及平穩性/Rate Accuracy；
ω≤1°/s，2×10-3 (1°平均法）；
1°/s≤ω<10°/s，2×10-4 （10°平均法）；
ω≥10°/s，2×10-5 （360°平均法）。
10.速率范圍/Rate Range：±0.0001°/s～±300°/s；
11.最大角加速度/Maximum Angular Acceleration：≥50°/s2；
12.用戶滑環/User Slip Ring：根據客戶要求定制/Customizable；
